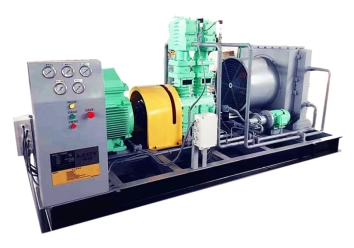

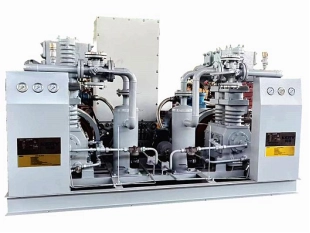

The compressors for the marine industry is an oil-free, reciprocating piston air compressor manufactured by our company using imported technology. It features low energy consumption, low noise, low vibration, high reliability, oil-free lubrication, and easy operation
Detailed description
The machine mainly consists of a compressor unit, an explosion-proof motor, an air circuit system, a cooling system, a lubrication system, an operating instrument system, a sewage discharge system, a common base frame, and an electrical system.
Main technical parameters of compressors used in the shipbuilding industry：
|
Model |
gas |
Rotational speed |
Intake pressure |
Discharge pressure |
Displacement |
Overall Dimensions |
Motor Model |
Drive Power / Shaft Power(kw) |
Weight |
Remark |
|
(r/min) |
(MPa) |
(MPa) |
(m³/min) |
(L×W×H)mm |
(T) |
|||||
|
W-4/210 |
Air |
860 |
Atm |
21 |
4 |
~3800×2000×2100 |
Y2805-4-W |
75/69 |
~7 |
Electric Fixed |
|
W-7/350 |
Air |
740 |
Atm |
35 |
7 |
~3620×2400×2300 |
Y355M-8 |
132/125 |
~7 |
Electric Fixed |
|
W-7/400 |
Air |
740 |
Atm |
40 |
7 |
~3620×2400×2300 |
Y355M-8 |
160/132 |
~7 |
Electric Fixed |
|
W-10/140-B |
Air |
1000 |
Atm |
14 |
10 |
~6500x2000x2100 |
TBD234V6 |
227/151 |
~8.5 |
Electric Fixed |
|
W-10/150-A |
Air |
980 |
Atm |
15 |
10 |
~3400×2400×2400 |
Y355M-6 |
160/132 |
~8.5 |
Electric Fixed |
|
W-10/150-A |
Air |
980 |
Atm |
20 |
10 |
~3620×2400×2300 |
Y355M2-6 |
185 |
~7 |
Electric Fixed |
|
WC-10/350 |
Air |
1000 |
Atm |
35 |
10 |
~10280×2496×3900 |
TBD234V8 |
303/187 |
~8 |
Vehicle-mounted |
|
W-10/350-A |
Air |
980 |
Atm |
35 |
10 |
~3620×2400×2300 |
Y355L-6 |
200/191 |
~8 |
Electric Fixed |
|
VW-710.5-12)-12 |
LPG |
980 |
0.05-1.2 |
1.2 |
7 |
~4335x3120x2570 |
YB315L1-L-H |
110/92 |
~3 |
Electric Fixed |
|
W-7/15-20 |
Ammonia |
882 |
1.5 |
2 |
7 |
~2516×1792×1704 |
YB355S-8-H |
132/120 |
~1.5 |
Electric Fixed |
|
ZW-1.2/(1.5-4.5)-8 |
Natural Gas |
740 |
0.15-0.45 |
0.8 |
1.2 |
~2000×1200×1650 |
YBE3-225S-8H |
18.5/15 |
~1.5 |
Electric Fixed |
FAQ
-
Working Principle of Marine Compressor ：
Marine compressors mainly intake and filter air, then compress it via mechanical structures to raise air pressure. The high-pressure compressed air is stored in air tanks for ship engine starting, pneumatic valve control, deck machinery operation and emergency braking. It also supplies dry and stable compressed air for cabin ventilation, instrument protection and daily marine auxiliary systems, ensuring safe and reliable navigation of vessels in various marine environments.
